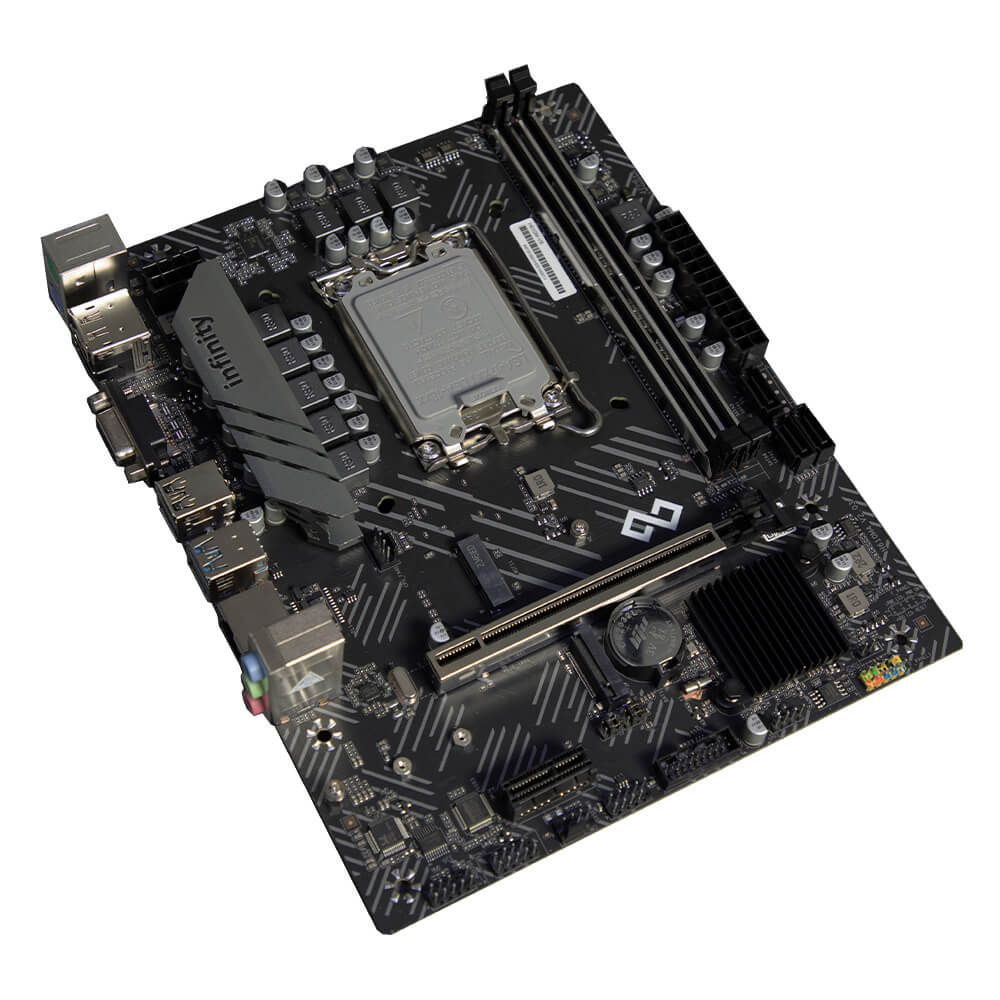

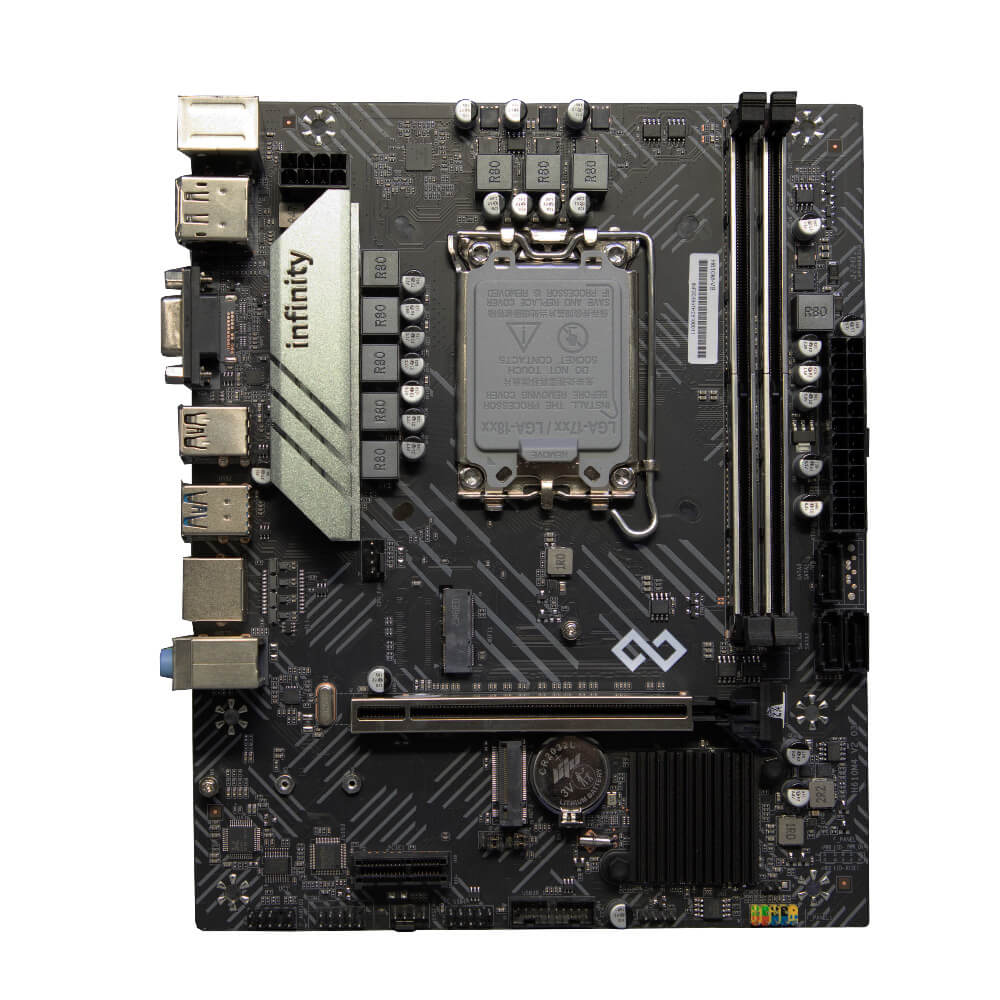

| Model | Infinity H610M-VB |
| CPU | Support Intel LGA1700 Processors
VRM 8 Phases |
| Chipset | Intel® H610 Chipset |
| Memory | 2 x DIMM slots, max. 64GB, DDR4 3200/2933/2666/2400/2133
Dual channel memory |
| Expansion Slots | 1 x PCIe 4.0 x 16
1 x PCIe 3.0 x 1 1 x M.2 WIFI |
| Storage | 1 x M.2 2280 NVME PCIE 3.0×4
3 x SATA3.0 6Gbps |
| Ethernet | Realtek Gigabit Network Card 8111H 10/100/1000Mbps |
| Audio | Realtek High Definition Audio ALC897 |

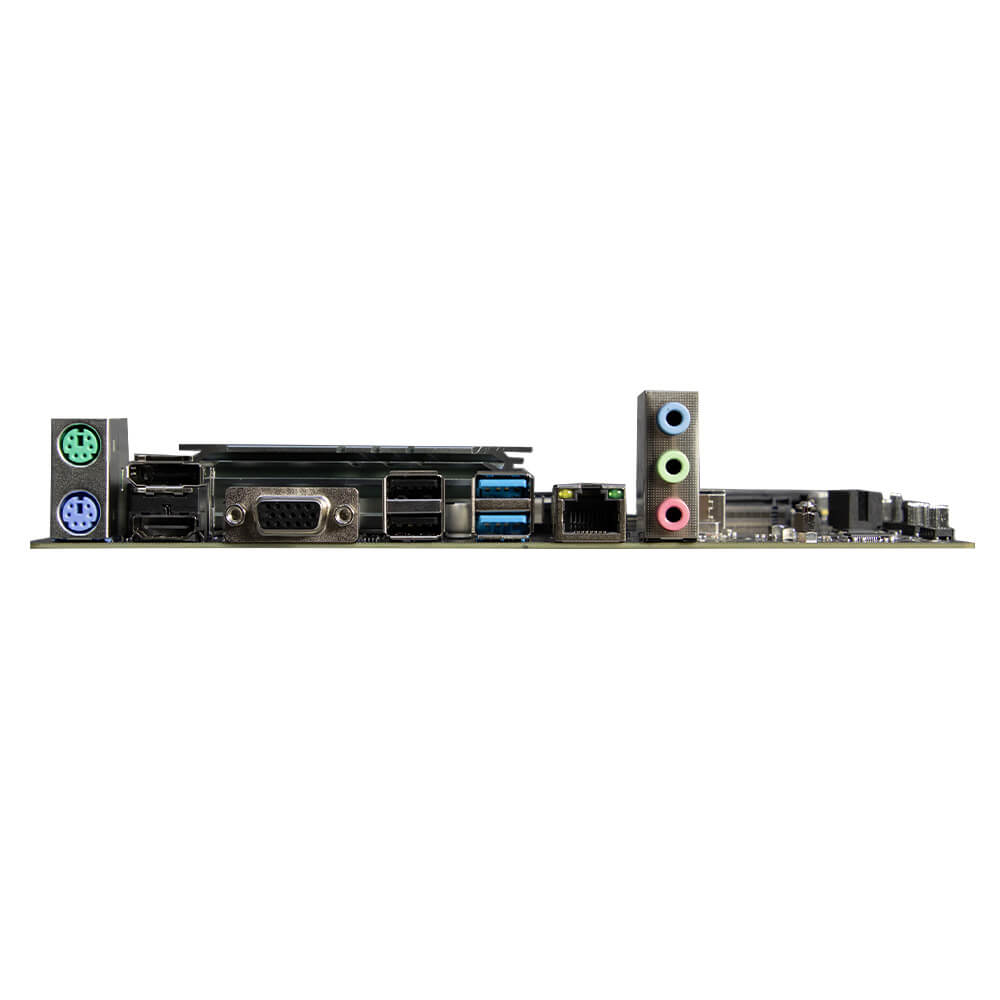

| Back Panel I/O Ports | 1 x PS/2 Keyboard + Mouse connector
1 x D-Sub (VGA) port 1 x HDMI port 1 x DP port 2 x USB 2.0 ports 2 x USB 3.2 Gen 1 ports 1 x RJ45 port 1 x Audio port |
| Internal I/O Connectors | 1 x 24-pin ATX power supply connector
1 x 8-pin 12V power connector 1 x 4-pin CPU_Fan connector 1 x 4-pin SYS_Fan connector 1 x Front Audio header 1 x Front panel header 1 x SPK header 1 x COM header 1 x CLR_CMOS header 1 x Front USB 3.2 Gen 1 ports, support 2 ports 1 x Front USB 2.0 header, support 2 ports |
| Accessories | 1 x I/O shield
1 x SATA Cable |
| Operating System | Windows® 11, Windows® 10 |
| Form Factor | Micro-ATX Form Factor – (22 cm x 18 cm) |
