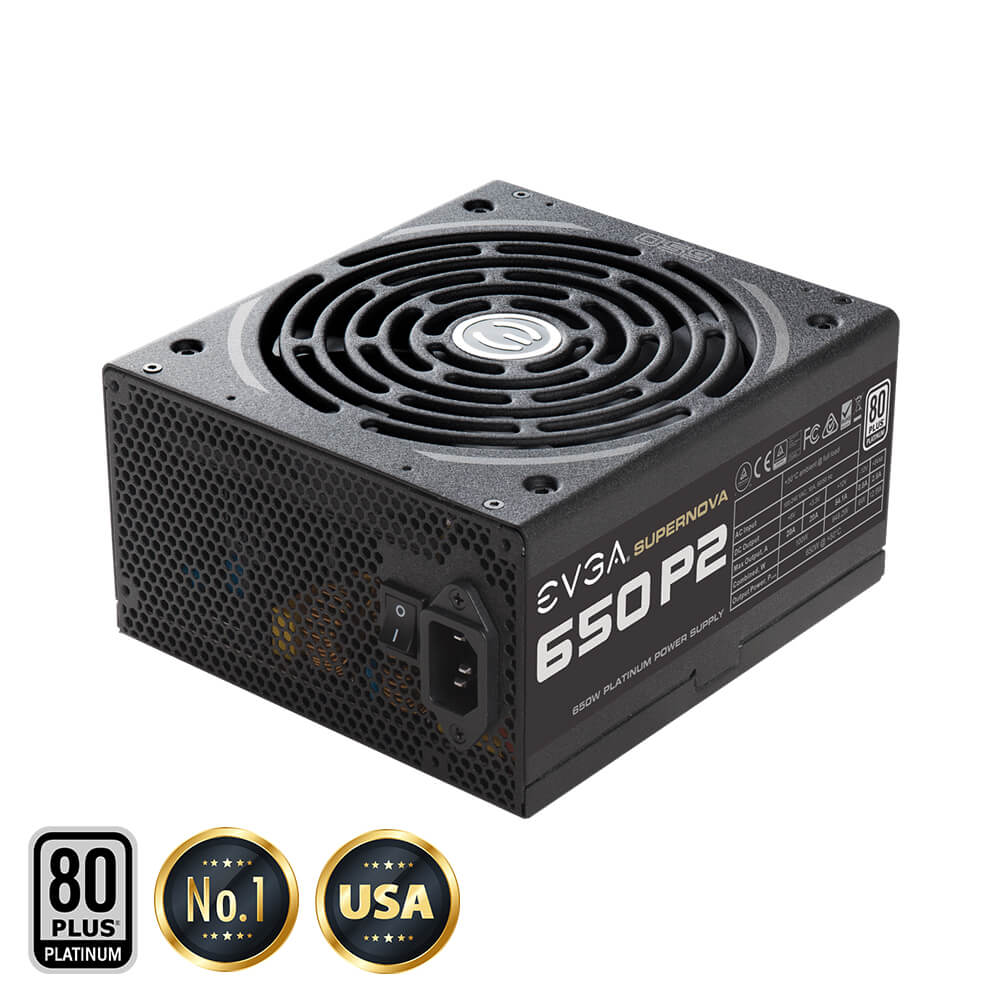

The unbeatable performance of the EVGA SuperNOVA P2 power supply line is now available in 650 watts. Based on the award winning P2 power supplies, this unit features 80 Plus Platinum rated efficiency, and clean, continuous power to every component. The ECO Control Fan system offers fan modes to provide absolutely zero fan noise during low load to medium load operations. Backed by an award winning 10 year warranty, and 100% Japanese capacitor design, the EVGA SuperNOVA 650 P2 power supply offers unbeatable performance at an unbeatable value.

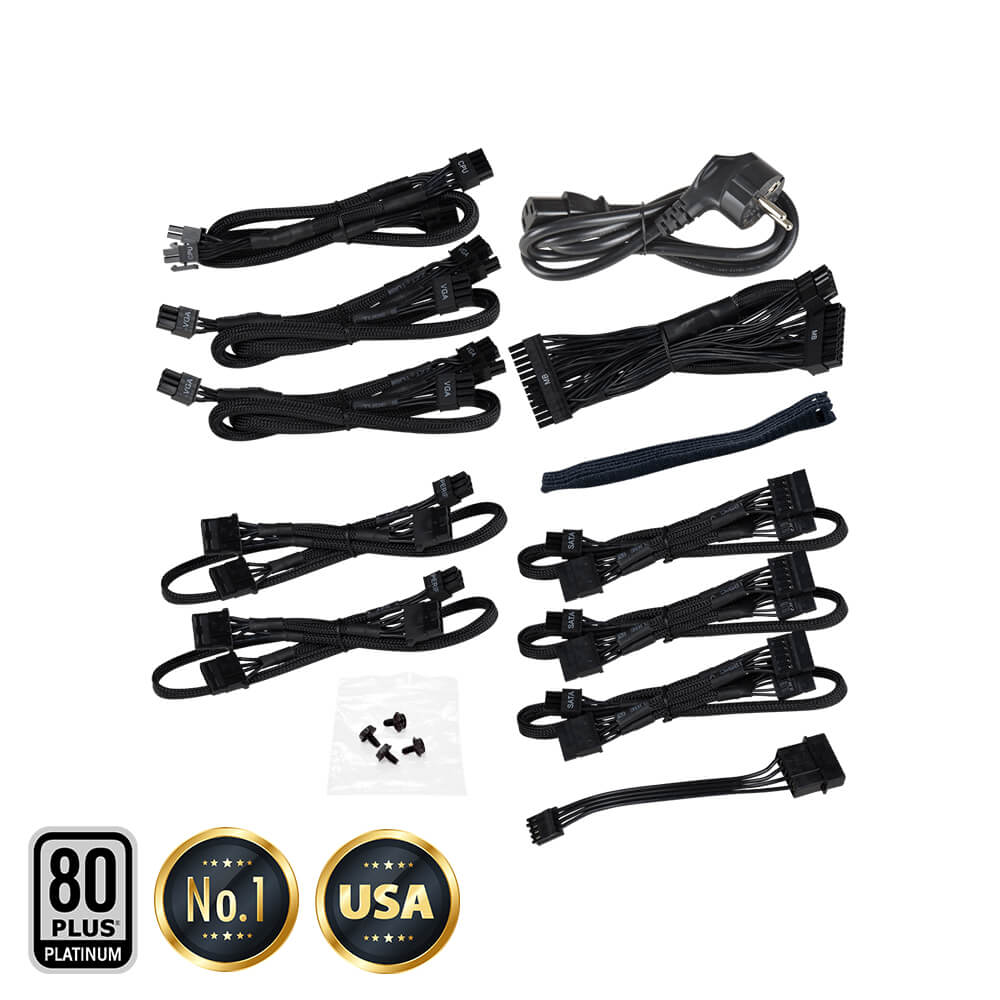

Cable Length
| 1x 600mm (m) |
| 1x 700mm, 850mm (m) |
| 2x 700mm, 850mm (m) |
| 3x 500mm, 600mm, 700mm (m) |
| 2x 500mm, 600mm, 700mm (m) |
| 1x 100mm |
| 1x 1500mm (m) |
| Full |

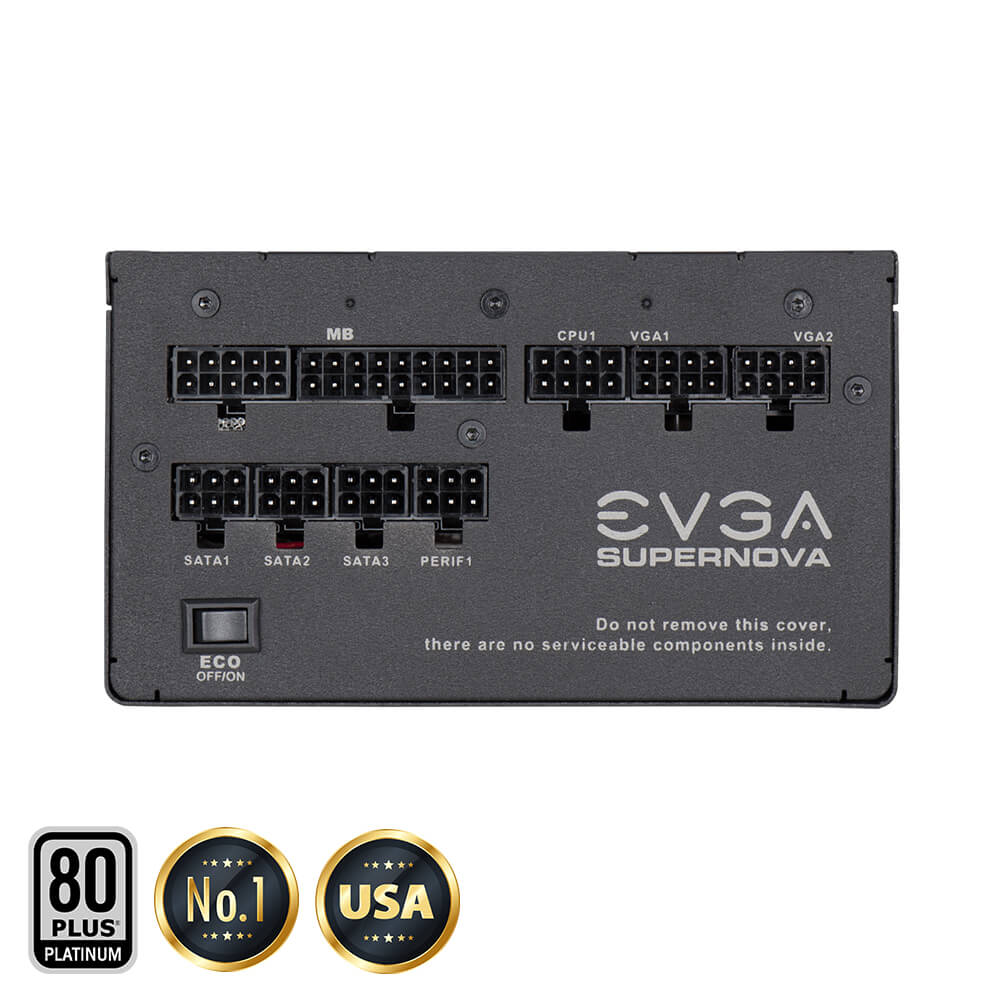

Connector Quantity
| 1x |
| 2x 8pin (4+4) |
| 2x 8pin (6+2), 2x 6pin |
| 9x |
| 6x |
| 1x |

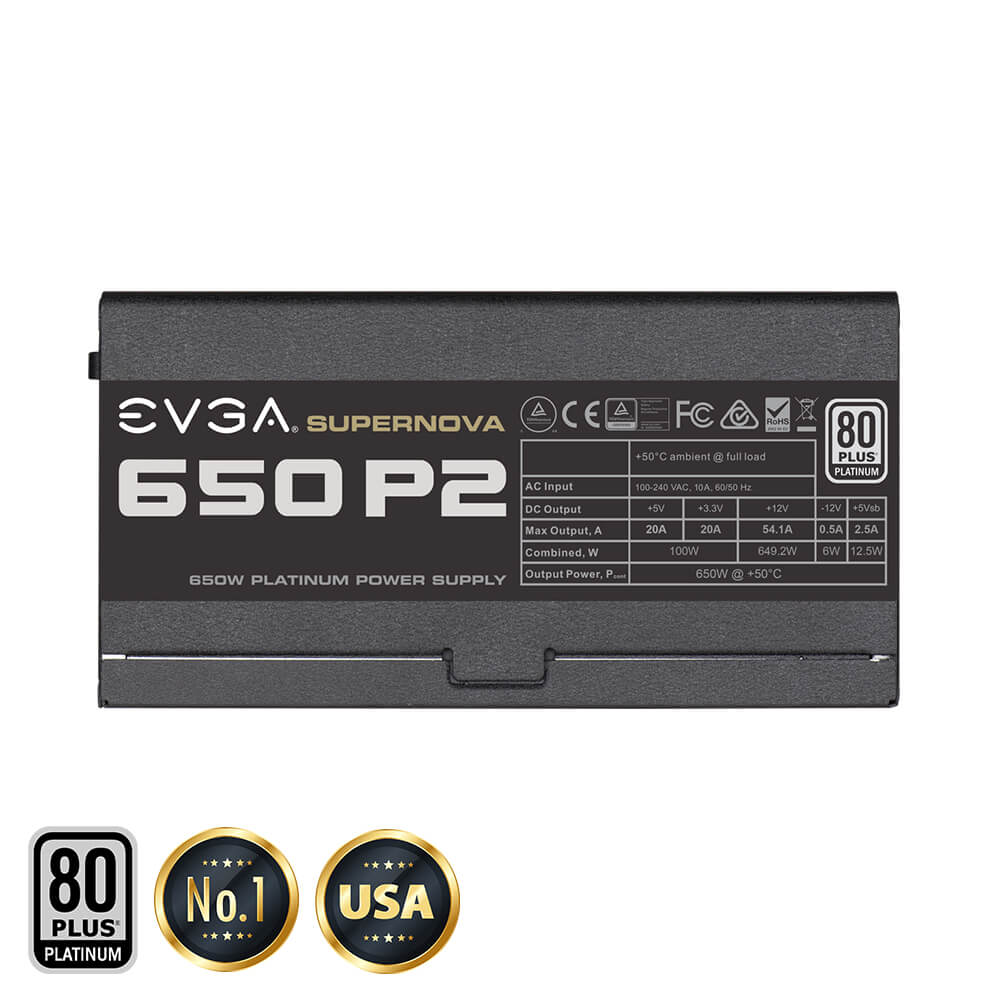

Power Specs
| 100 – 240 VAC, 10A, 50 – 60 Hz |
| +3.3V |
+5V |
+12V |
+5Vsb |
-12V |
| 20A |
20A |
54.1A |
2.5A |
0.5A |
| 649.2W |
| 100W |
649.2W |
12.5W |
6W |
| 650W @ +50C |
Additional Details
| 0° to 50° C |
| 100% |
| Yes |
| 100,000 Hours |
| 5 lbs |
| 86mm (H) x 150mm (W) x 165mm (L) |
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement |
140mm
Double Ball Bearing |
