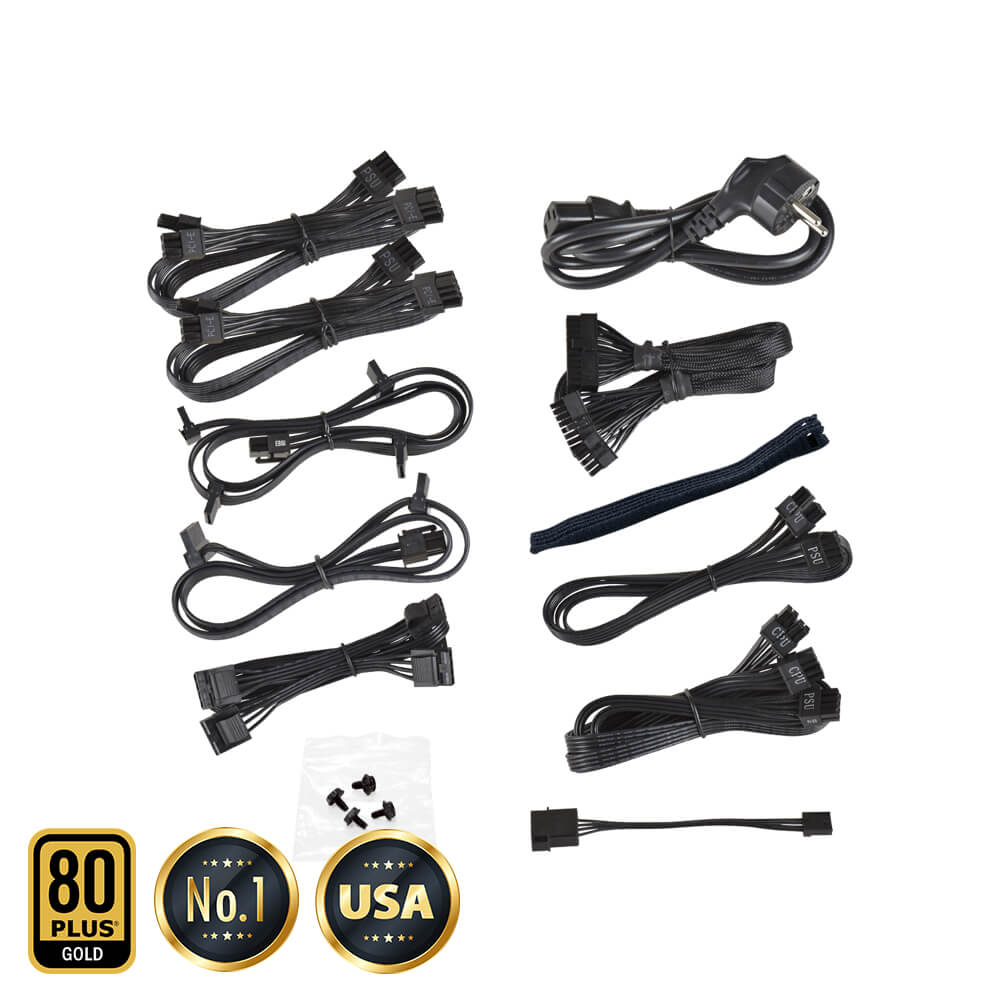

Cable Length
| ATX Cable | 1x 600mm (m) |
| EPS Cable | 1x 8pin (4+4) + 2x 8pin (4+4) (Two sets of Cables are provided but mutually exclusive) |
| PCIe Cable | 2x 550mm, 650mm |
| SATA Cable | 1x 550mm, 650mm, 750mm, 850mm (m), 1x 550mm, 650mm |
| Four-Pin Peripheral Cable | 1x 550mm, 650mm, 750mm, 850mm (m) |
| Floppy Adapter | 1x 100mm |
| AC Power | 1x 1500mm (m) |
| Modular Cable Type | Full |
Connector Quantity
| 24 Pin ATX | 1x |
| EPS (CPU) | 1x 8pin (4+4) + 8pin |
| PCIe | 4x 8pin (6+2) |
| SATA | 6x |
| Four-Pin Peripheral | 4x |
| Floppy | 1x |

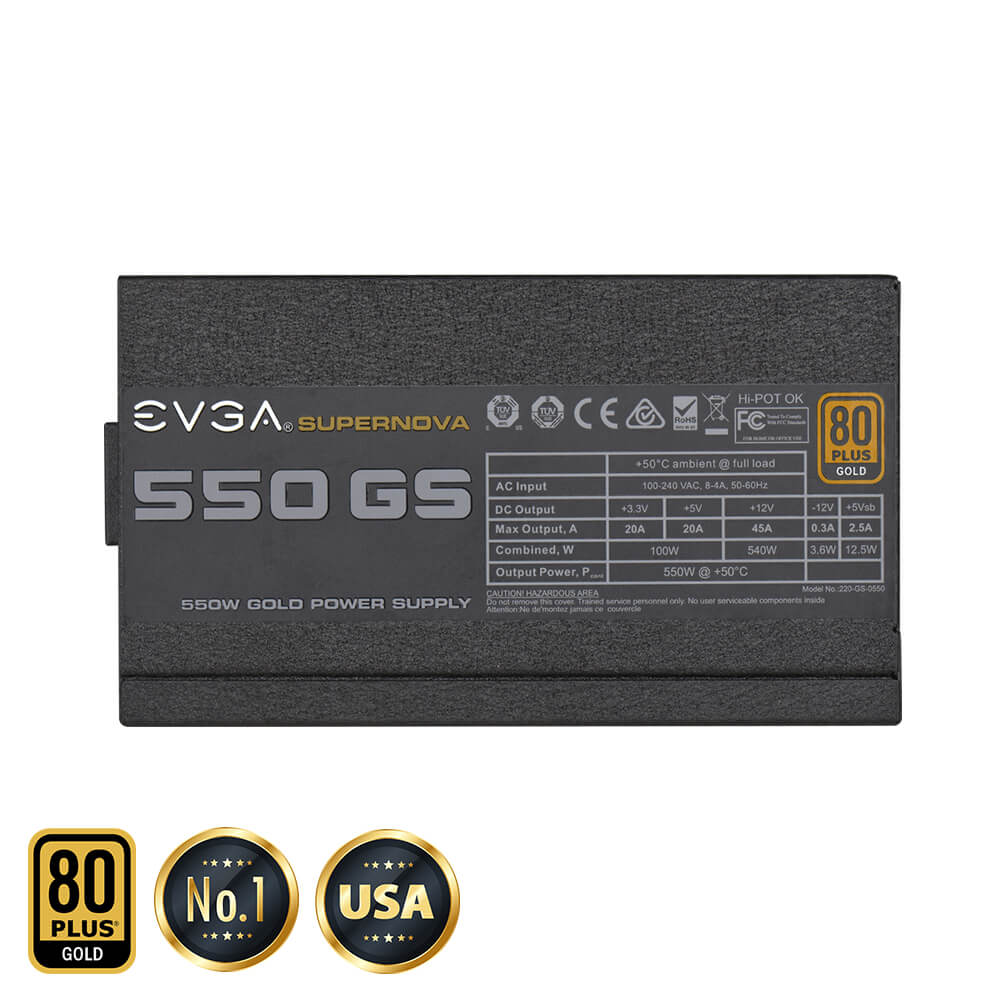

Power Specs
| AC Input | 100 – 240 VAC, 8-4A, 50 – 60 Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 20A | 20A | 45A | 2.5A | 0.3A |
| 540W | |||||
| 100W | 540W | 12.5W | 3.6W | ||
| Total | 550W @ +50C | ||||
Additional Details
| Operating Temperature | 0° to 50° C |
| Japanese Capacitors | 100% |
| ECO Mode | Yes |
| MTBF | 100,000 Hours |
| Net Weight | 5 lbs |
| Size | 86mm (H) x 150mm (W) x 150mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| Fan Size / Bearing | 120mm Teflon Nano-Steel Bearing |
