Cable Length

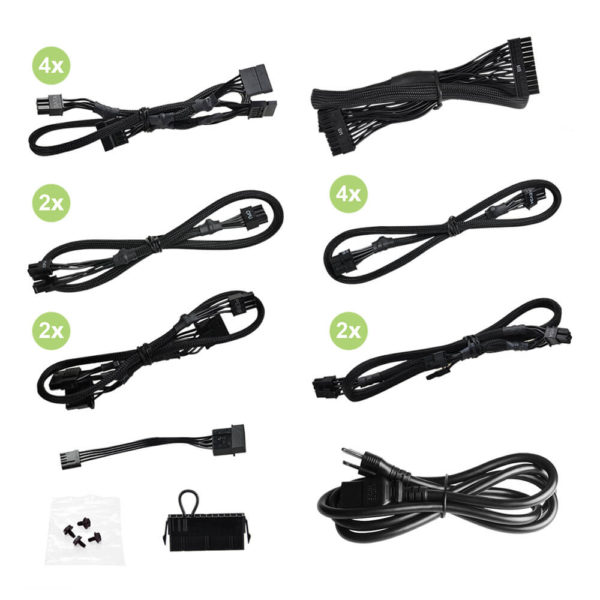

| ATX Cable | 1x 600mm (m) |
| EPS Cable | 2x 750mm (m) |
| PCIe Cable | 4x 750mm, 2x 750mm, 900mm |
| SATA Cable | 4x 550mm, 650mm, 750mm |
| Four-Pin Peripheral Cable | 2x 550mm, 650mm, 750mm |
| Floppy Adapter | 1x 100mm |
| AC Power | 1x 1800mm |
| Modular Cable Type | Full |
| Molex to FDD | 1x |
Connector Quantity
| 24 Pin ATX | 1x |
| EPS (CPU) | 2x 8pin(4+4) |
| PCIe | 8x 8pin(6+2) |
| SATA | 12x |
| Four-Pin Peripheral | 6x |
| Floppy | 1x |

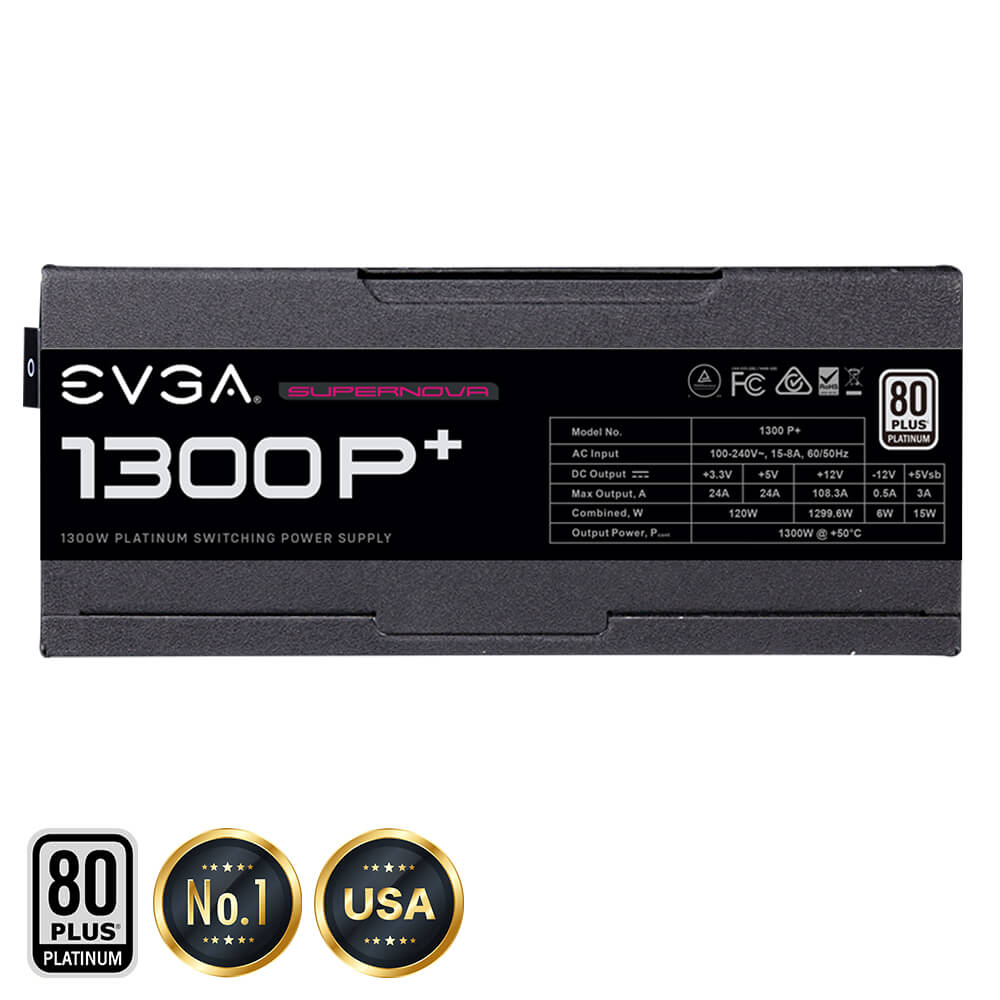

Power Specs
| AC Input | 100 – 240 VAC, 8-4A, 50 – 60 Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 24A | 24A | 108.3A | 3A | 0.3A |
| 108.3A | |||||
| 120W | 1299.6W | 15W | 6W | ||
| Total | 1300W | ||||
Additional Details
| Operating Temperature | 0° to 50° C |
| Japanese Capacitors | 100% |
| ECO Mode | Auto |
| MTBF | 100,000 Hours |
| Net Weight | 8.80 lbs |
| Size | 86mm (H) x 150mm (W) x 200mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
| Fan Size / Bearing | 135mm Fluid Dynamic Bearing |
