Fan bearingDual Ball Bearing
Dimensions | |

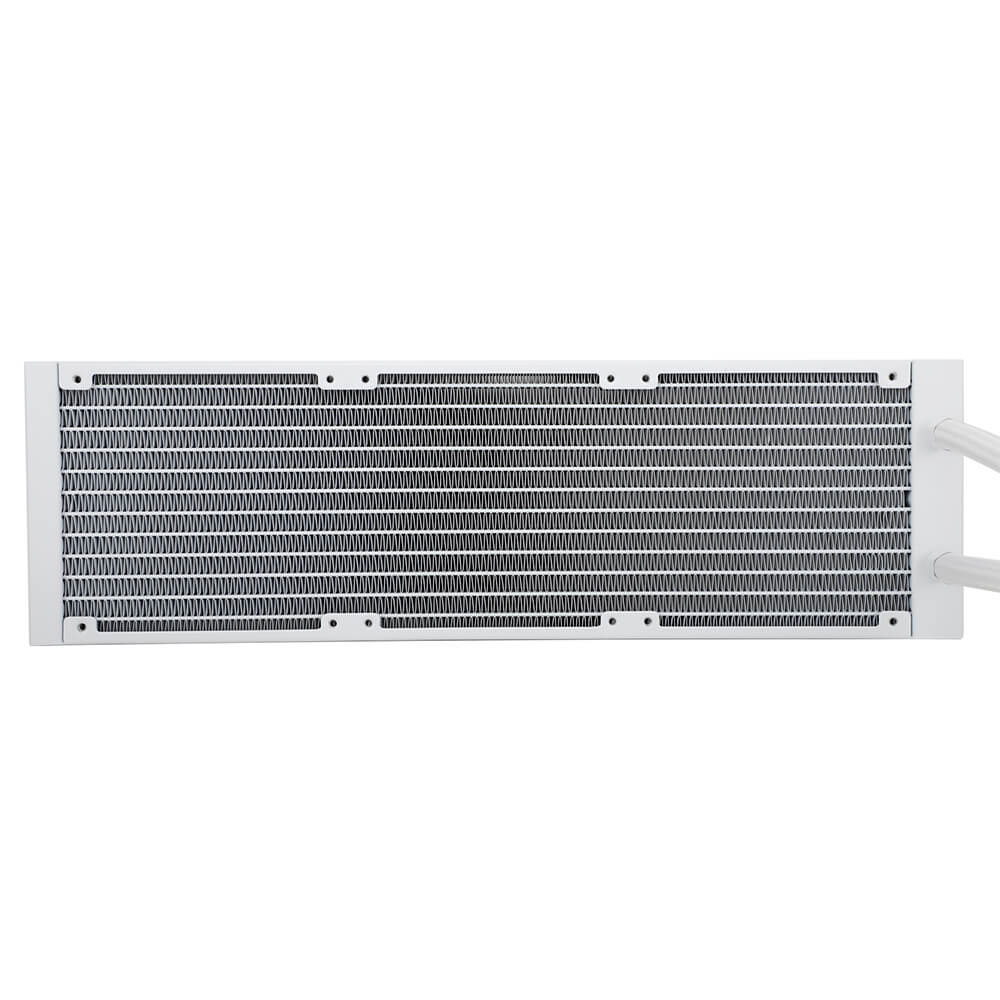

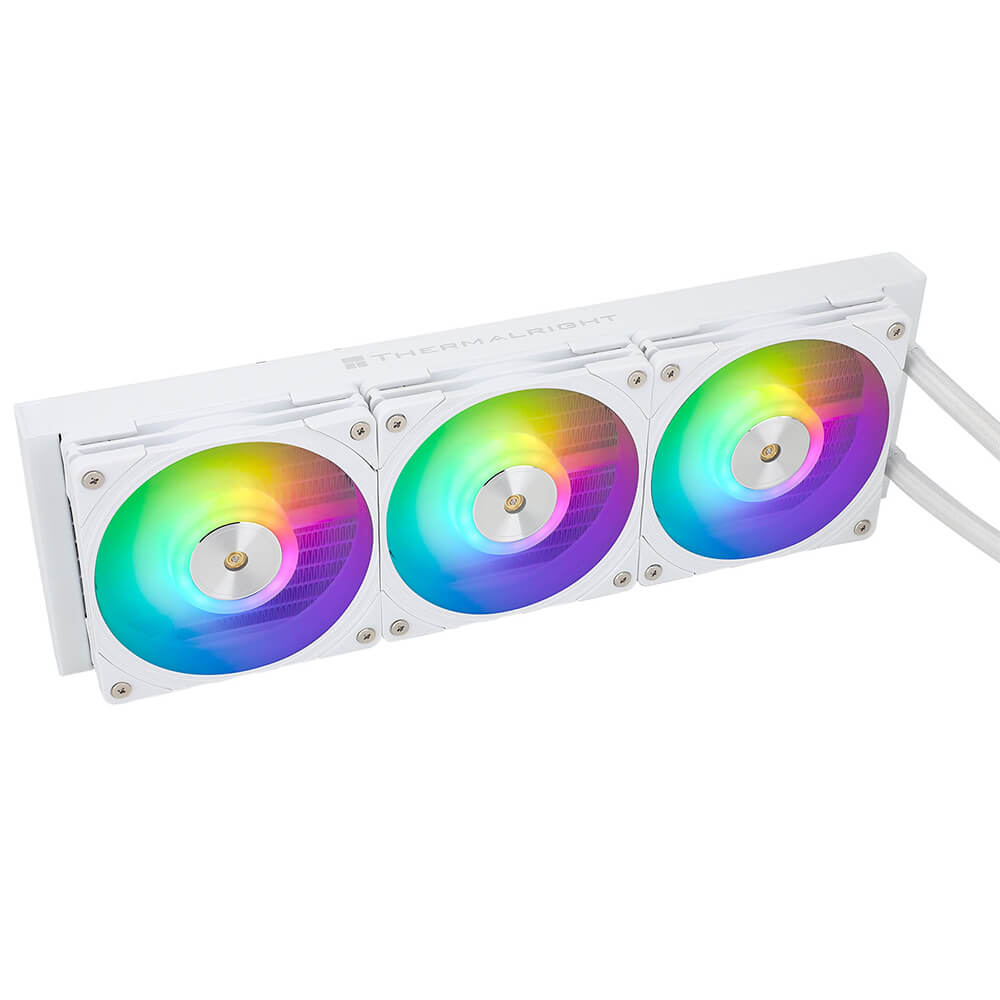

Radiator Dimension | 397 x 120 x 27 mm |

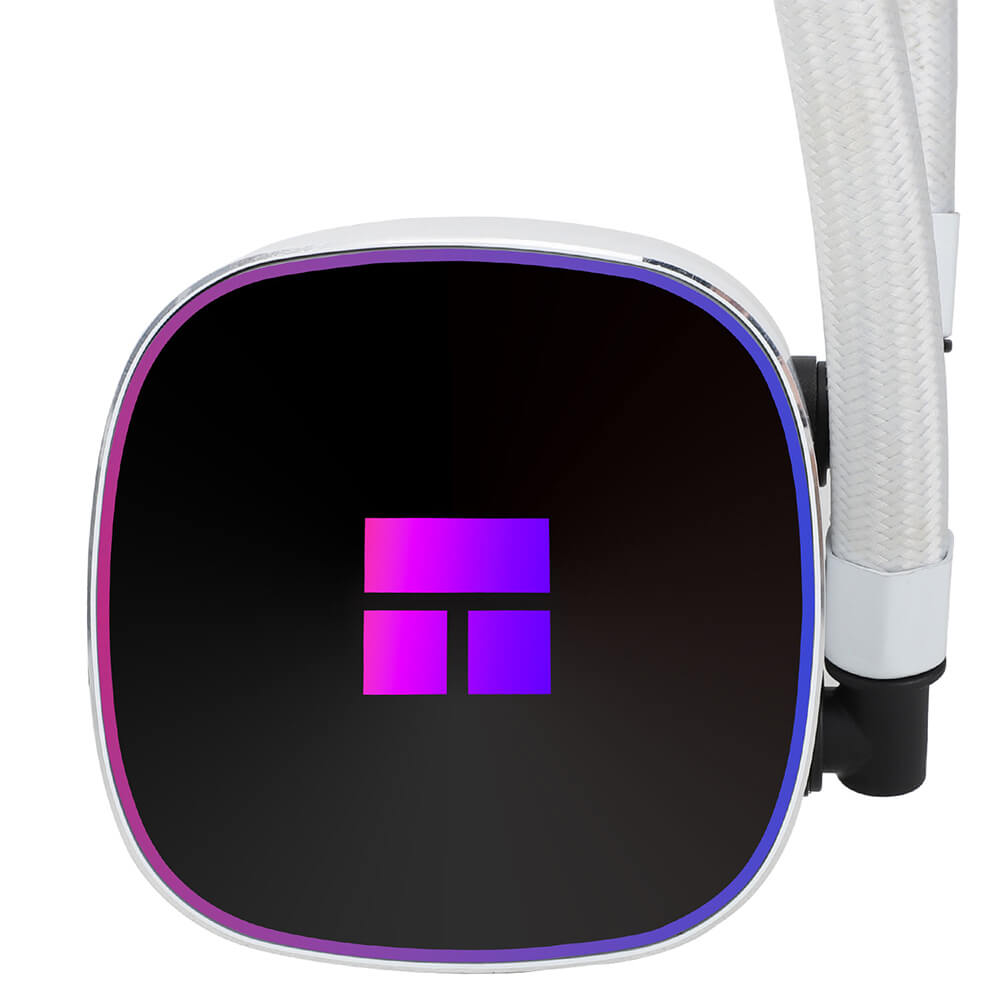

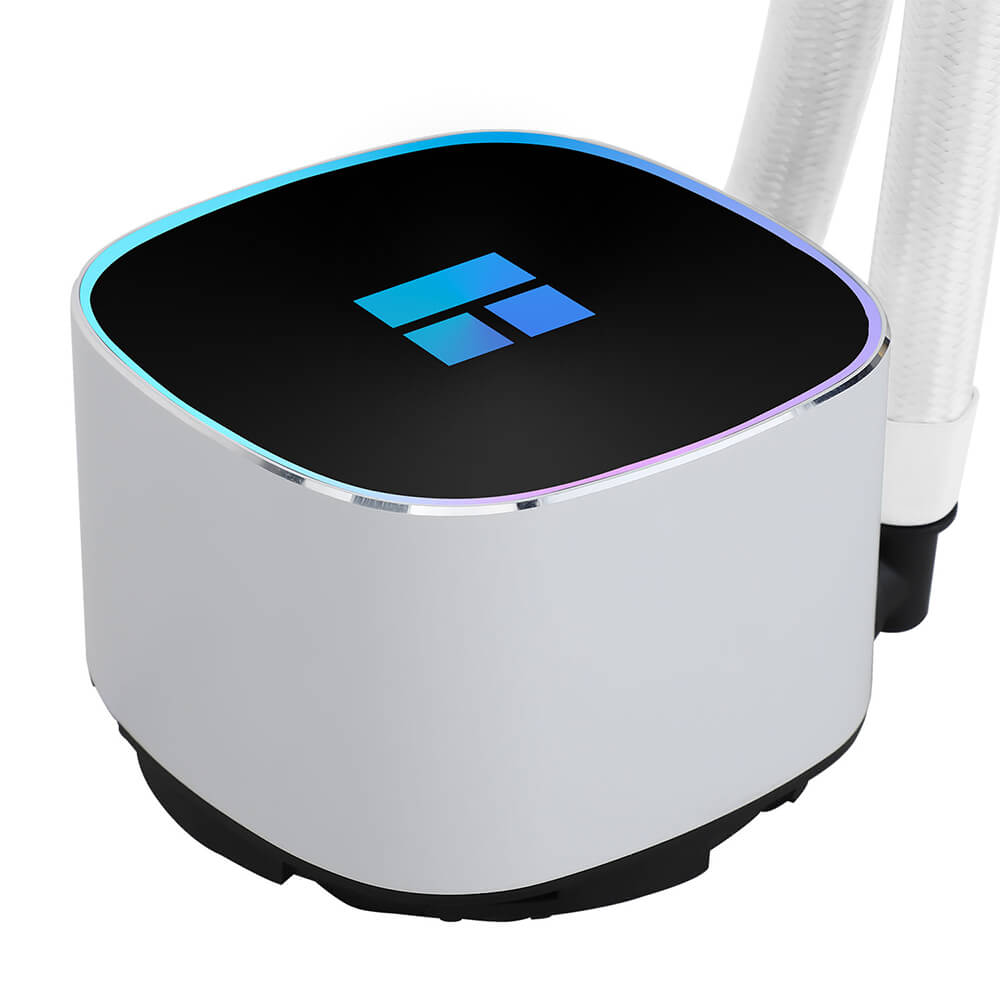

Waterblock Dimension | 73 x 73 x 53 mm |
Water pipe | 450 mm |
Pump parameters | |
Speed | 2800 RPM ± 10% |
Working voltage | 12V DC |
DC Rated current | 0.24A Max |
Operating noise | ≤27 dBA |
Water pump interface | +12V 4Pin PWM |
Water pump power | ≤3.0W |
ARGB interface | +5V/3pin |
Pump life | 40000Hours |
Fan parameters | |
Fan Model | TL-B12W-S EXTREM |
Size | 120 x 120 x 25.6 mm |
Speed | 2150 RPM ± 10% (MAX) |
Rated current | 12V DC |
Wind pressure | 2.87mm H20 (MAX) |
Air volume | 69CFM (MAX) |
Operating noise | ≤28.1 dBA |
Fan interface | 4pin PWM |
Fan bearing | Dual Ball Bearing |
LED Interface | +5V 3Pin ARGB |
