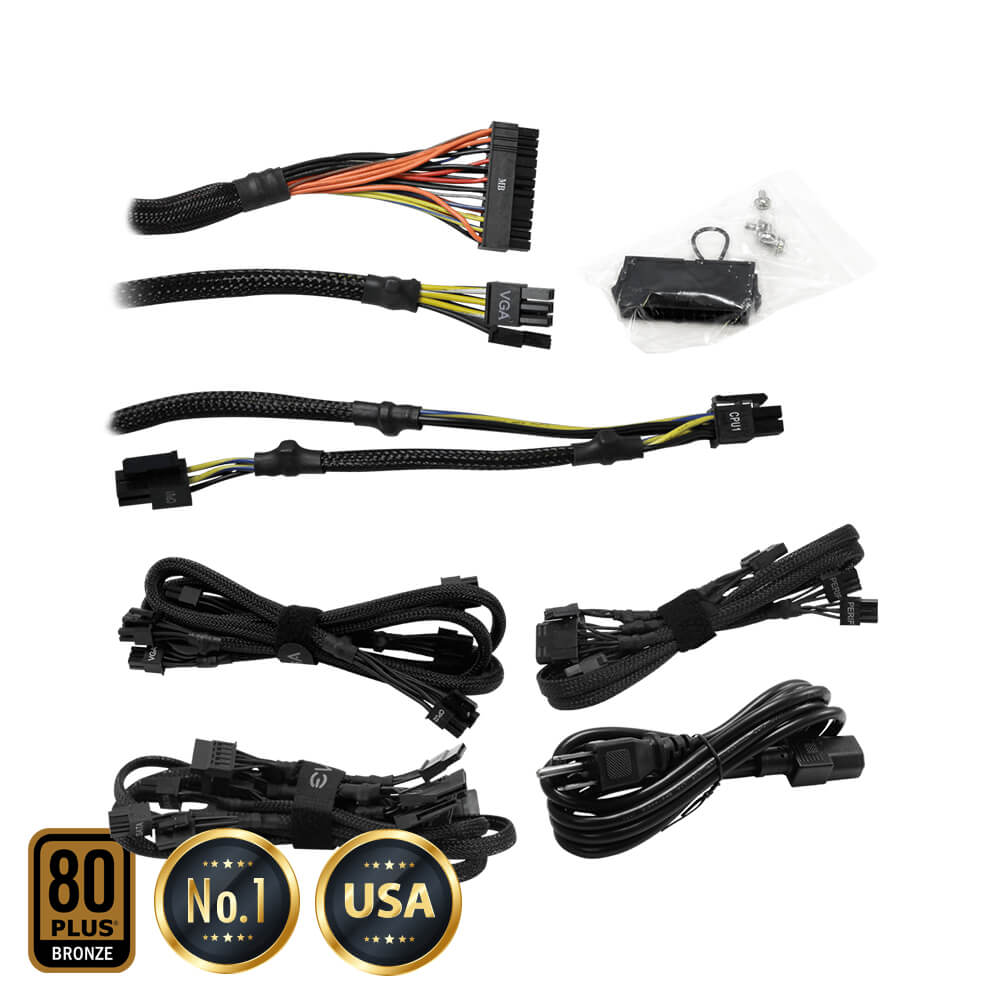

CABLE LENGTH
| ATX Cable | 1x 600mm (m) |
| EPS Cable | 2x 600mm (m) |
| PCIE Cable | 3x 600mm (m) |
| SATA Cable | 3x 550mm, 650mm, 750mm (m) |
| Four-Pin Peripheral Cable | 1x 550mm, 650mm, 750mm (m), 1x 550mm, 650mm + 750m |
| AC Power | 1x 1800mm (m) |

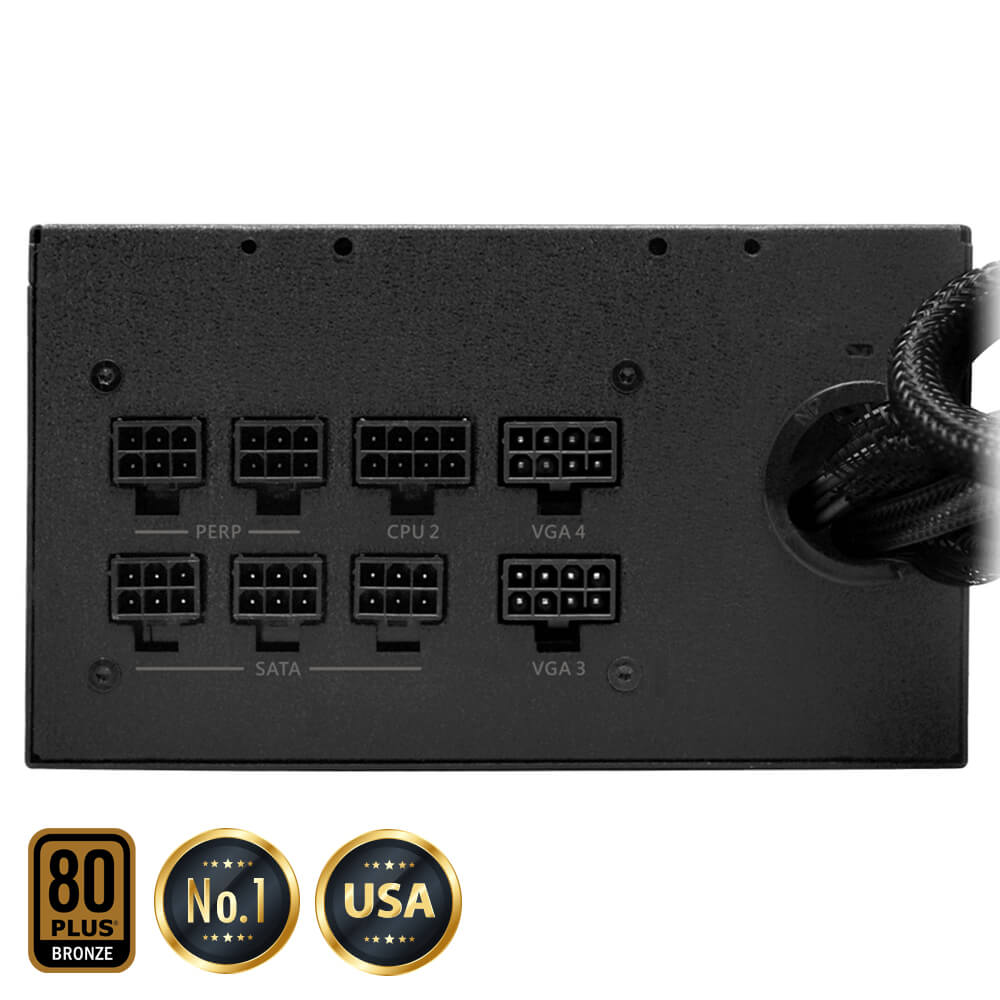

| Modular Cable Type | Semi |
CONNECTOR QUANTITY
| 24 Pin ATX | 1x |
| EPS (CPU) | 2x 8pin (4+4) |
| PCIE | 3x 8pin (6+2) |
| SATA | 9x |
| Four-Pin Peripheral | 5x |
| Floppy | 1x |

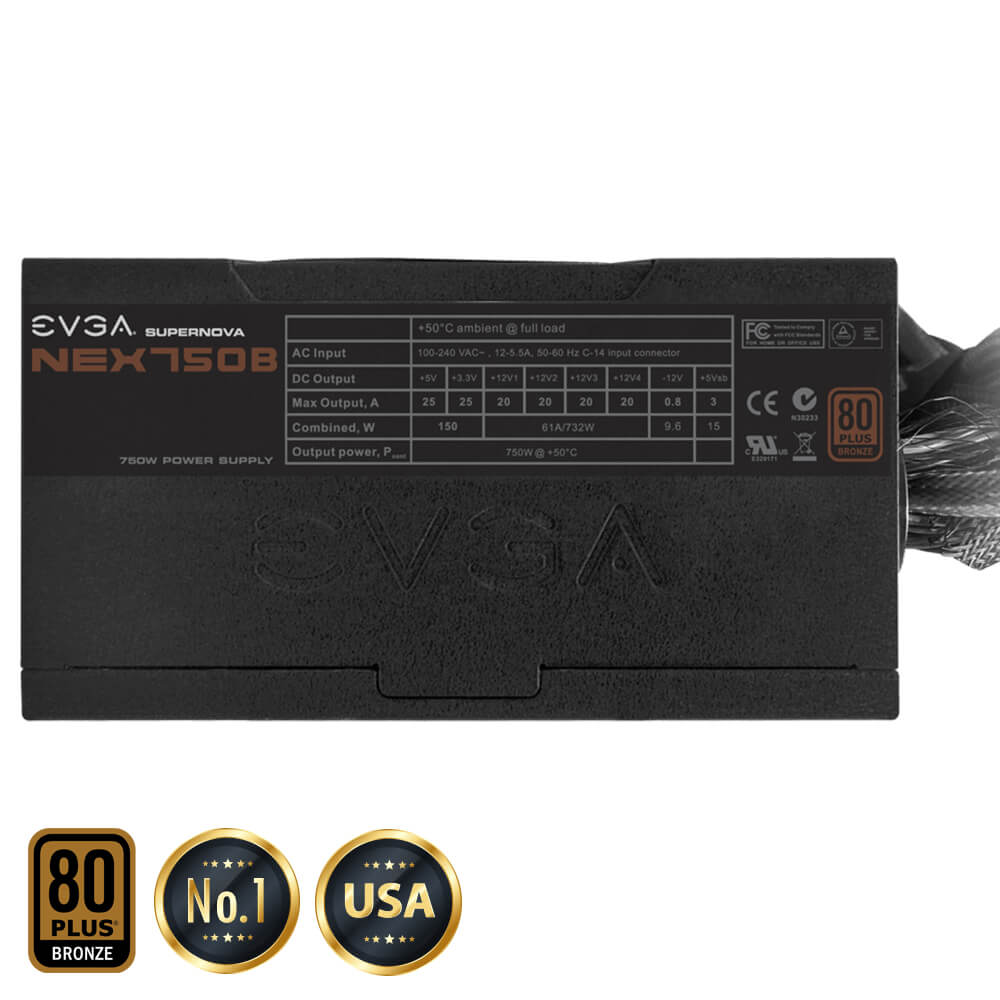

POWER SPECS
| AC Input | 100 – 240 VAC, 12-5.5A, 50 – 60 Hz | ||||
| Rail | +3.3V | +5V | +12V1 / +12V2 / +12V3 / +12V4 | +5Vsb | -12V |
| Max Output | 25A | 25A | 61A (4 +12V Rails) | 3A | 0.8A |
| 61A | |||||
| 150W | 732W | 15W | 9.6W | ||
| Total | 750W @ +50C | ||||
ADDITIONAL DETAILS
| Operating Temperature | 0° to 50° C |
| Japanese Capacitors | Main PCB |
| ECO Mode | No |
| MTBF | 100,000 Hours |
| Net Weight | 5 lbs |
| Size | 80mm (H) x 150mm (W) x 165mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| Fan Size / Bearing | 135mm Double Ball Bearing |
