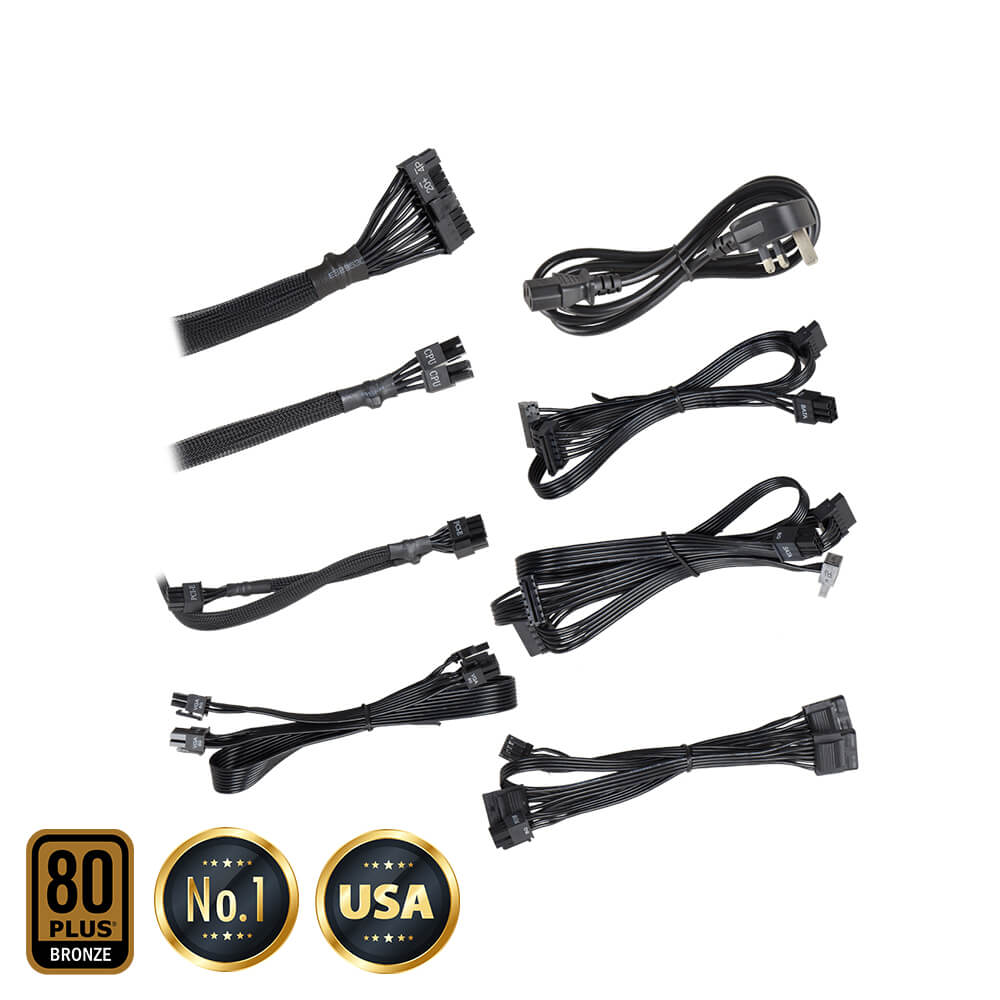

CABLE LENGTH
| ATX Cable | 1x 550mm |
| EPS Cable | 2x 600mm |
| PCIE Cable | 3x 550mm, 700mm |
| SATA Cable | 1x500mm, 650mm, 800mm, 950mm, 2x 500mm, 650mm, 800mm |
| Four-Pin Peripheral Cable | 1x 550mm, 700mm, 1x 550mm, 700mm, 850mm + 1000mm (Floppy) |
| Floppy Adapter | 1x |
| AC Power | 1x 1800mm |
| Modular Cable Type | Semi |
CONNECTOR QUANTITY
| 24 Pin ATX | 1x |
| EPS (CPU) | 2x8pin(4+4) |
| PCIE | 3x 8pin (6+2), 3x 6pin |
| SATA | 10x |
| Four-Pin Peripheral | 5x |
| Floppy | 1x |

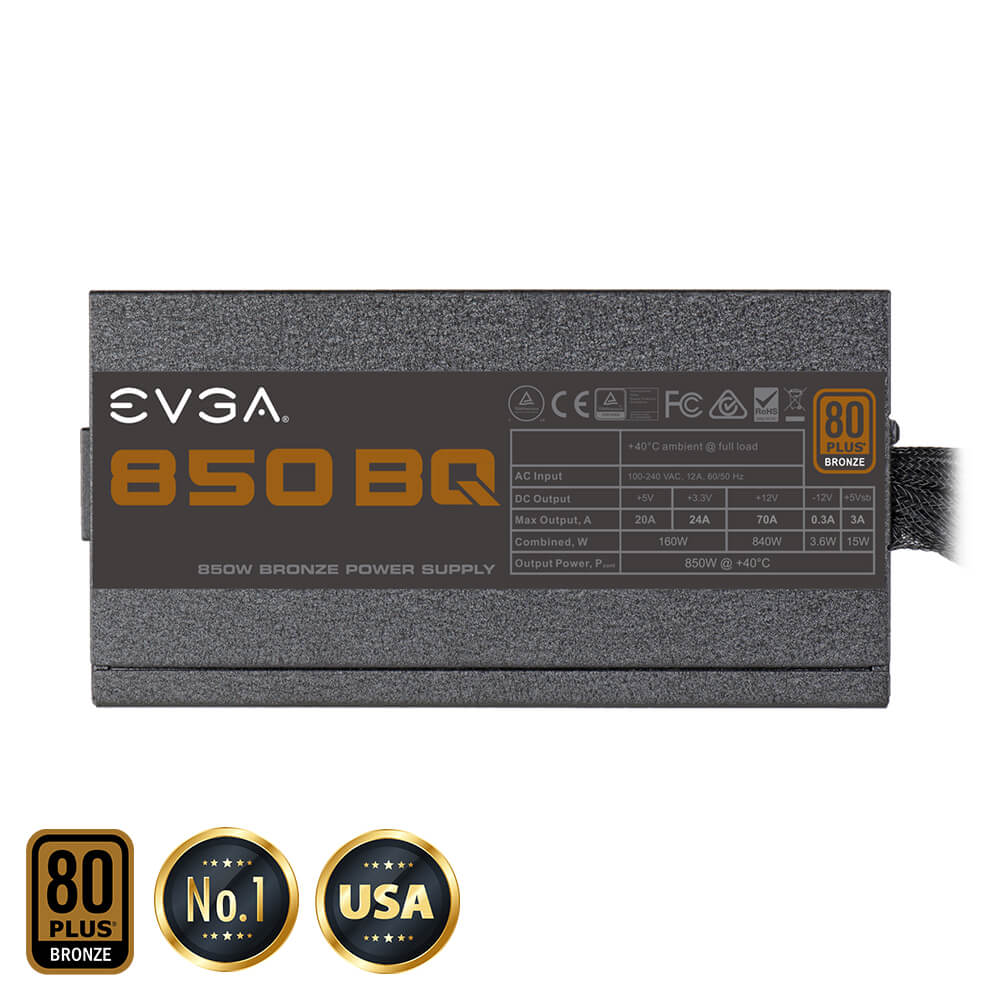

POWER SPECS
| AC Input | 100 – 240 VAC, 12A, 50 – 60 Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 24A | 20A | 70A | 3A | 0.3A |
| 70A | |||||
| 160W | 840W | 15W | 3.6W | ||
| Total | 850W @ +40C | ||||
ADDITIONAL DETAILS
| Operating Temperature | 0° to 40° C |
| Japanese Capacitors | Yes |
| ECO Mode | No |
| MTBF | 100,000 Hours |
| Net Weight | 7 lbs |
| Size | 85mm (H) x 150mm (W) x 140mm (L) |
| Approvals | TUV, CE, FCC, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| Fan Size / Bearing | 140mm Teflon Nano-Steel Bearing |
