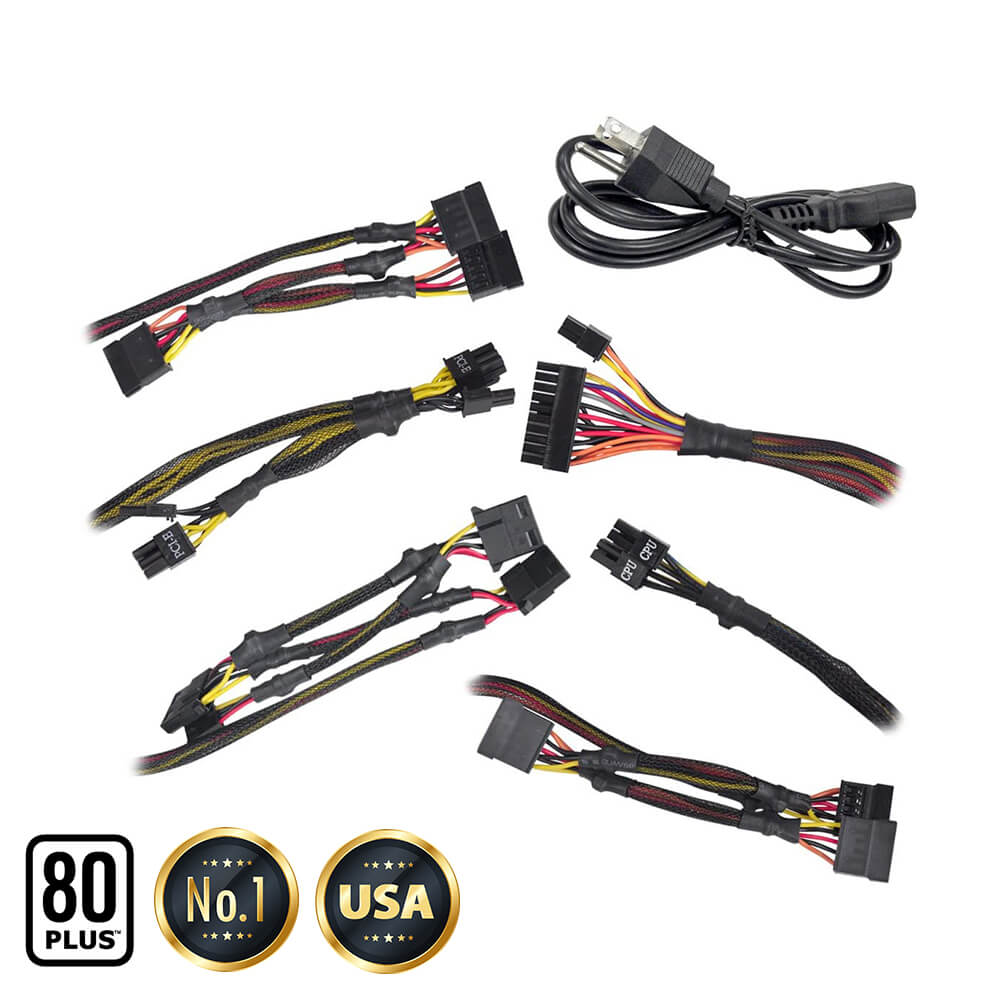

CABLE LENGTH
| ATX Cable | 1x 550mm |
| EPS Cable | 1x 600mm |
| PCIe Cable | 1x 550mm, 670mm |
| SATA Cable | 2x 450mm, 570mm, 690mm |
| Four-Pin Peripheral Cable | 1x 450mm, 570mm, 690mm, 810mm (f) |
| Floppy Adapter | 1x |
| AC Power | 1x 1200mm (m) |
| Modular Cable Type | No |
CONNECTOR QUANTITY
| 24 Pin ATX | 1x 24pin (20+4) |
| EPS (CPU) | 1x 8pin (4+4) |
| PCIe | 2x 8pin (6+2) |
| SATA | 6x |
| Four-Pin Peripheral | 3x |
| Floppy | 1x |

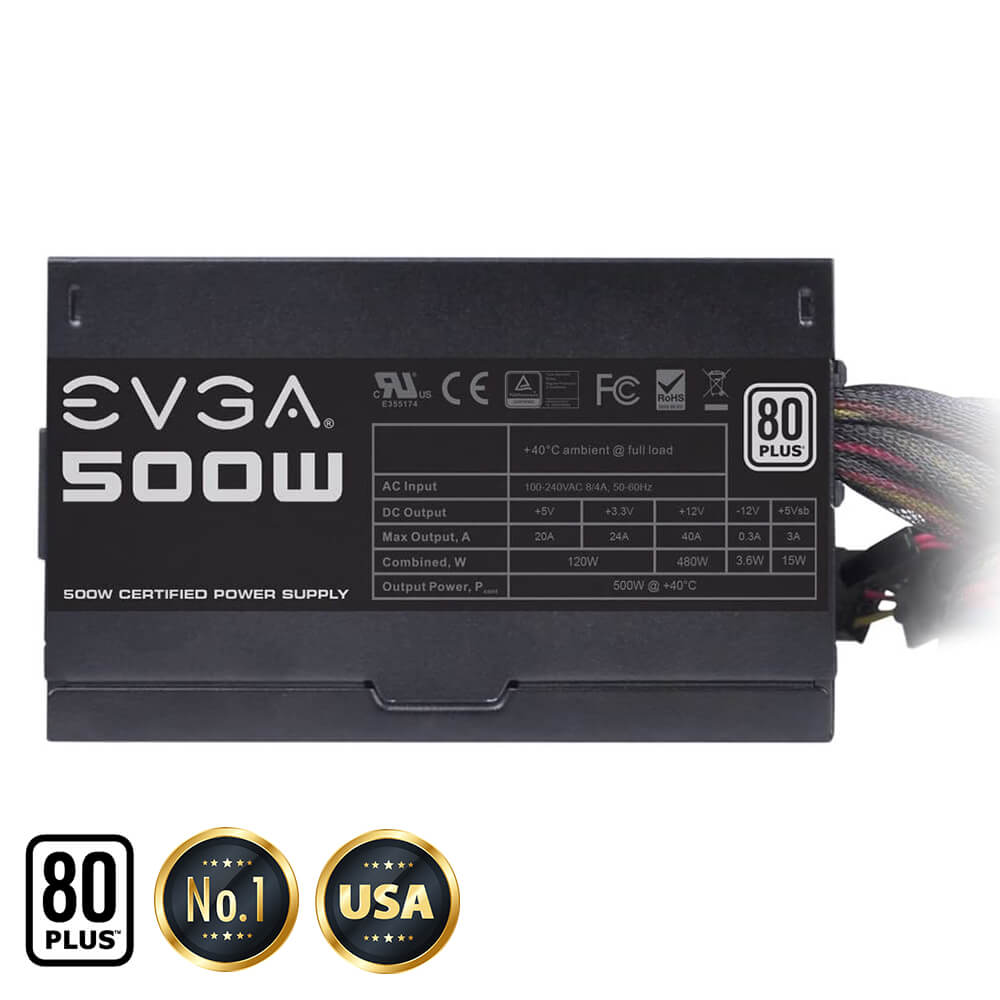

POWER SPECS
| AC Input | 100-240 VAC, 8/4A, 50-60Hz | ||||
| Rail | +5V | +3.3V | +12V | +5Vsb | -12V |
| Max Output | 20A | 24A | 40A | 3A | 0.3A |
| 120W | 480W | 15W | 3.6W | ||
| Total | 500W | ||||
ADDITIONAL DETAILS
| Operating Temperature | 0° to 40° C |
| Japanese Capacitors | No |
| ECO Mode | No |
| MTBF | 100,000 Hours |
| Net Weight | 4 lbs |
| Size | 85mm (H) x 150mm (W) x 140mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| Fan Size / Bearing | 120mm Sleeve Bearing |
