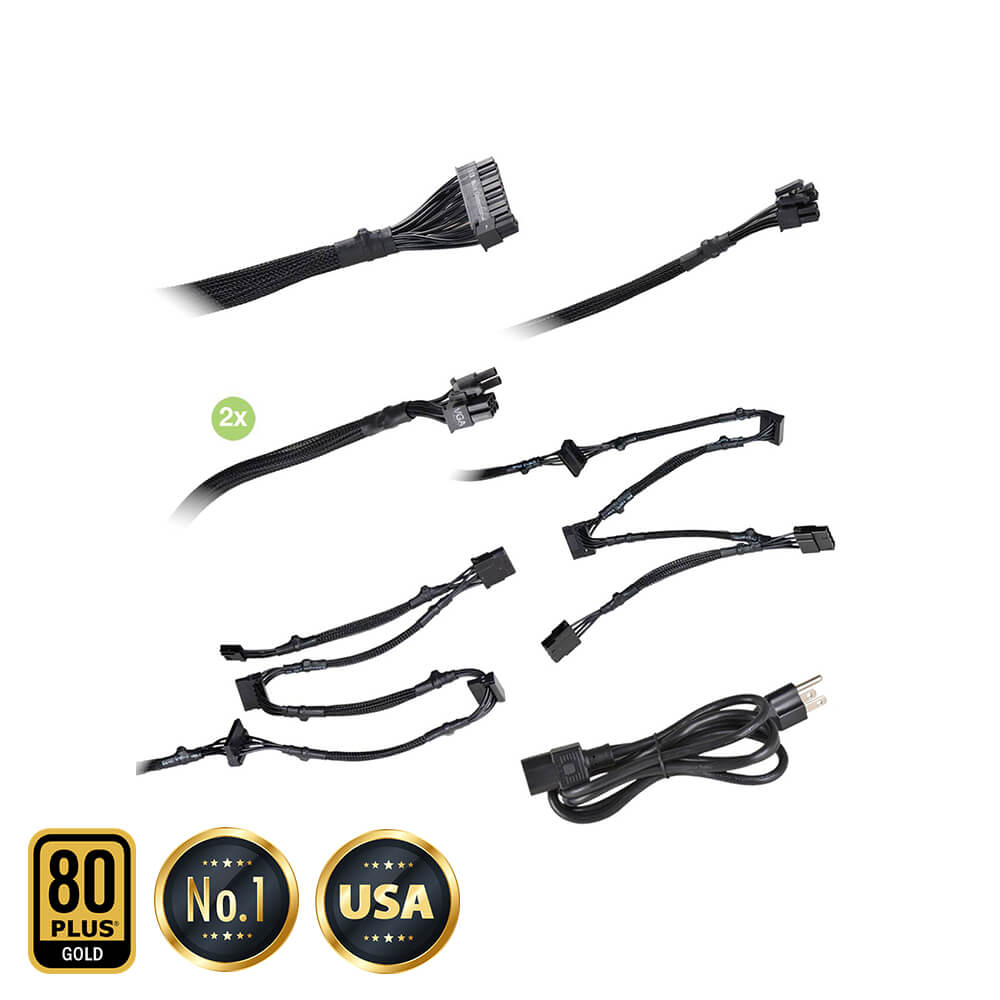

Cable Length
| ATX Cable | 1x 600mm |
| EPS Cable | 1x 600mm |
| PCIE Cable | 2x 550mm |
| SATA Cable | 1x450mm,600mm,750mm+850mm(4 Pin)+1000mm (floppy) |
| AC Power | 1x 1500mm |
| Modular Cable Type | No |
Connector Quantity
| 24 Pin ATX | 1x |
| EPS (CPU) | 1x 8pin (4+4) |
| PCIE | 2x 8pin (6+2) |
| SATA | 6x |
| Four-Pin Peripheral | 3x |
| Floppy | 1x |

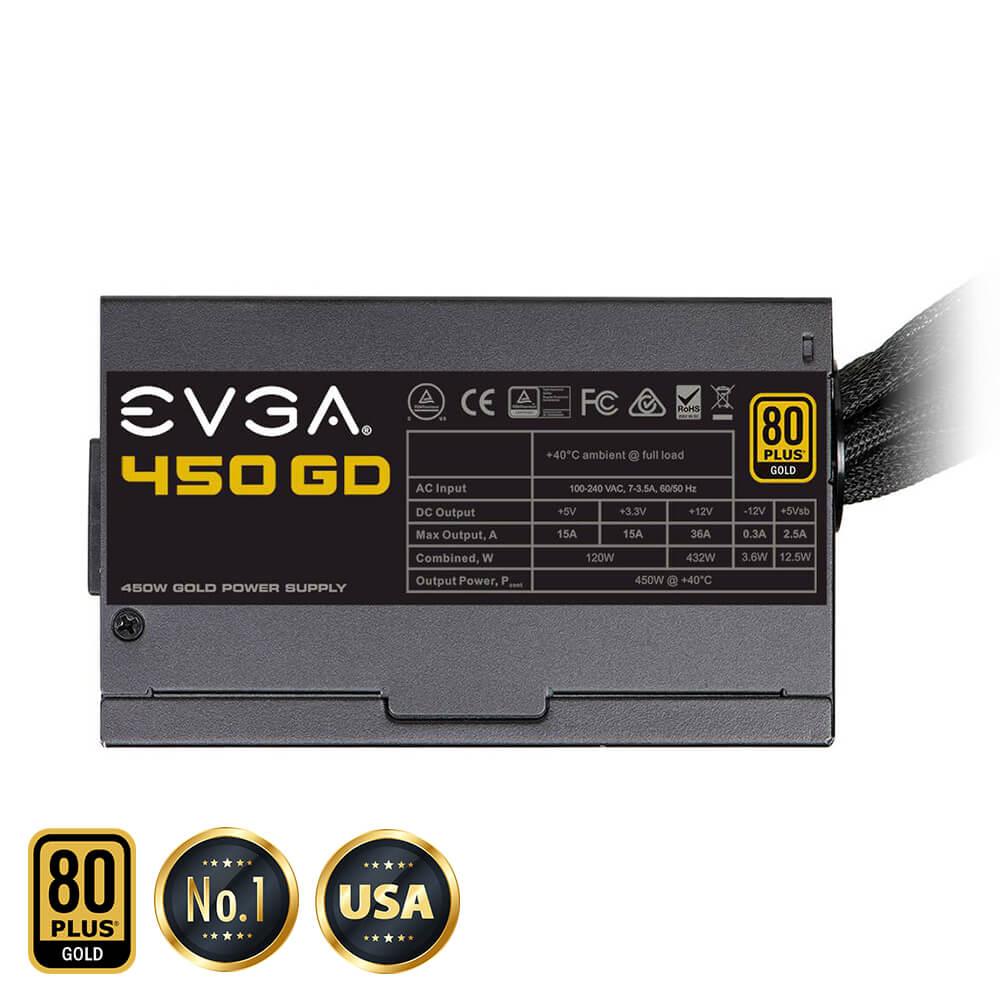

Power Specs
| AC Input | 100 – 240 VAC, 7-3.5A, 50 – 60 Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 15A | 15A | 36A | 2.5A | 0.3A |
| 120W | 432W | 12.5W | 3.6W | ||
| Total | 450W @ +40C | ||||
Additional Details
| Operating Temperature | 0° to 40° C |
| Japanese Capacitors | Main PCB |
| ECO Mode | No |
| MTBF | 100,000 Hours |
| Net Weight | 6 lbs |
| Size | 85mm (H) x 0mm (W) x 165mm (L) |
| Approvals | TUV, CB, CE, FCC, cTUVus, BSMI, CCC, WEEE, RoHS |
| Fan Size / Bearing | 120mm HYB Bearing |
